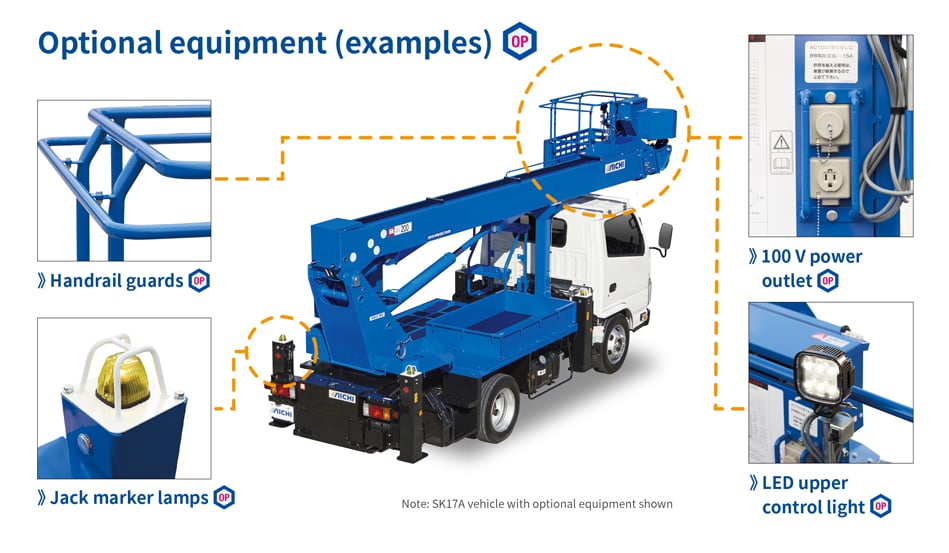

Note: SK17A vehicle with optional equipment shown

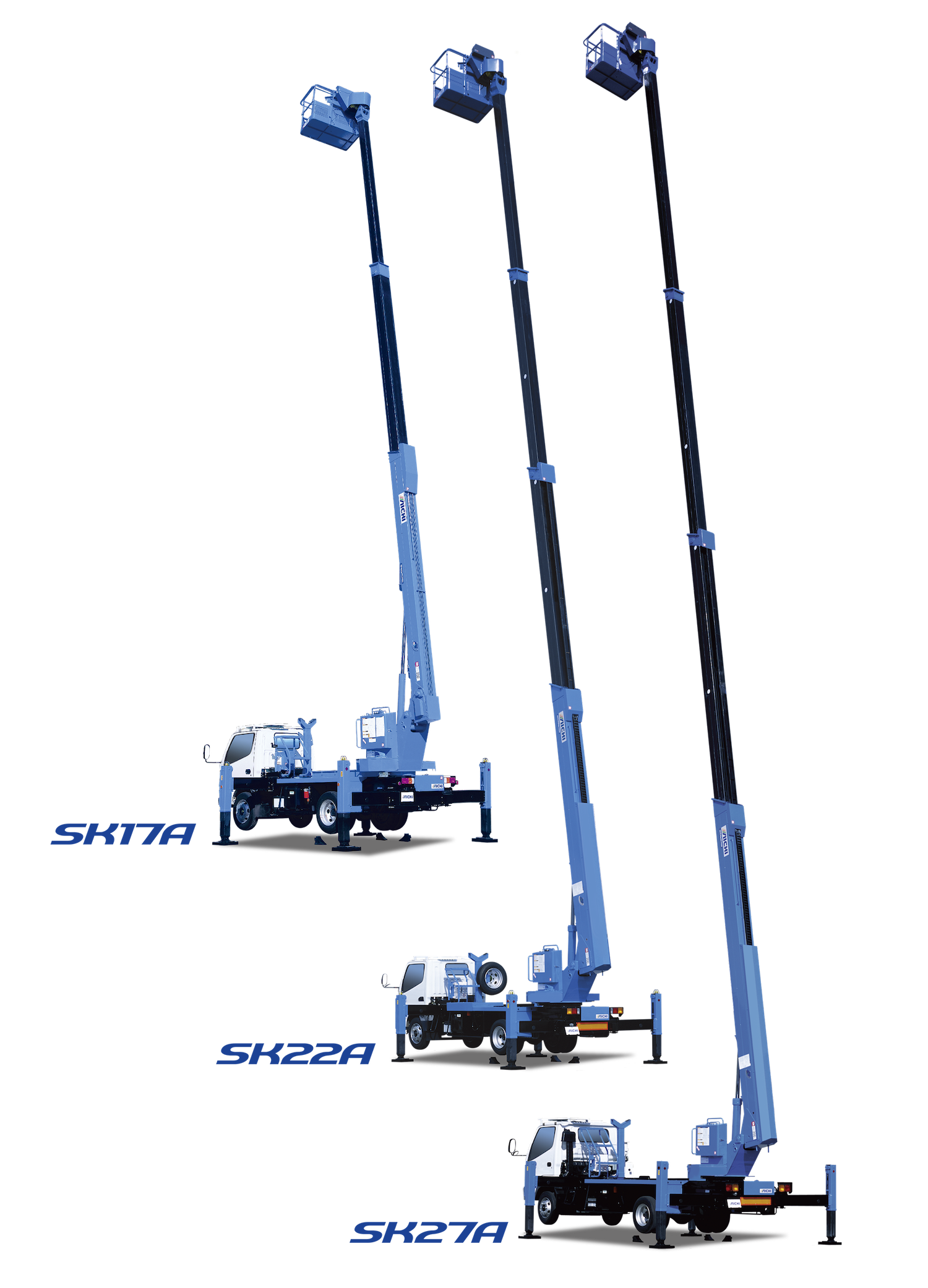

| MODEL | SK17A |
|---|---|
| RATED LOAD | 200kg or two persons |
| MAX. FLOOR HEIGHT CLASS | 17.1m |
| OUTREACH CLASS | 15.0m (with 100 kg load) |
| MODEL | SK22A |
|---|---|
| RATED LOAD | 200kg or two persons |
| MAX. FLOOR HEIGHT CLASS | 22.1m |
| OUTREACH CLASS | 14.6m (with 100 kg load) |
| MODEL | SK27A |
|---|---|
| RATED LOAD | 200kg or two persons |
| MAX. FLOOR HEIGHT CLASS | 27.0m |
| OUTREACH CLASS | 15.4m (with 100 kg load) |
Click to enlarge images.

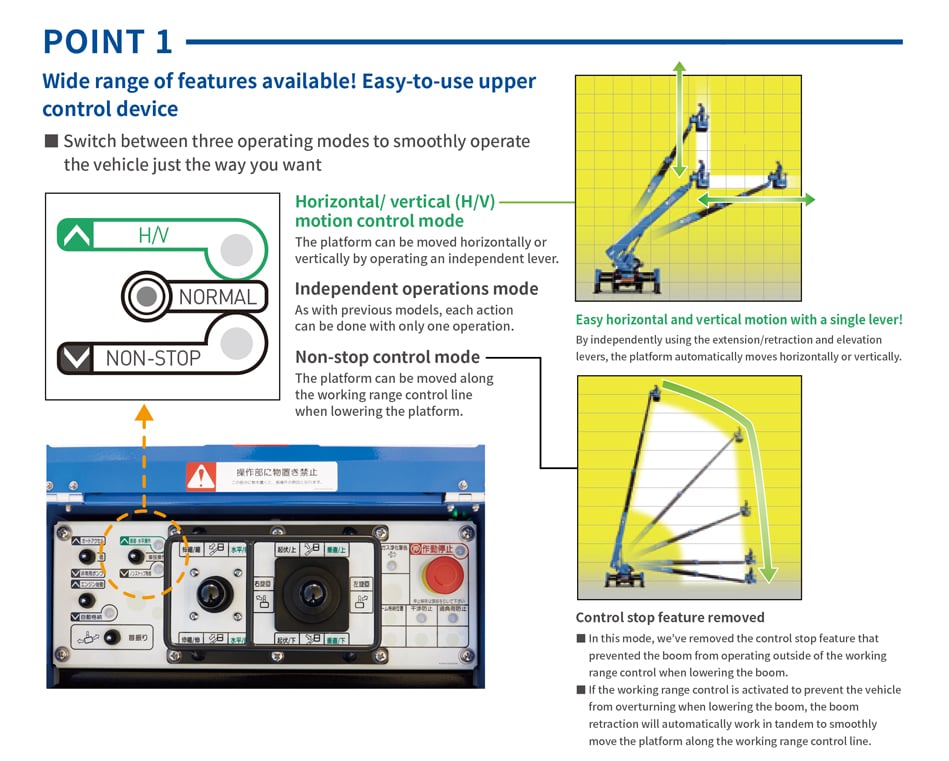

[POINT 1] Wide range of features available! Easy-to-use upper control device

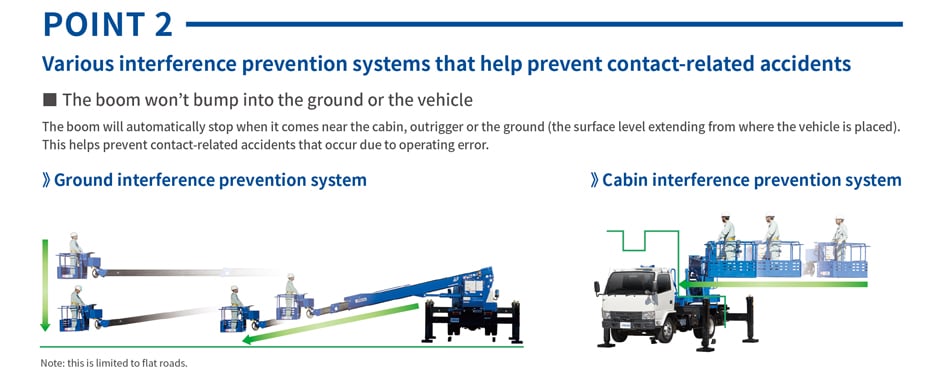

[POINT 2] Various interference prevention systems that help prevent contact-related accidents

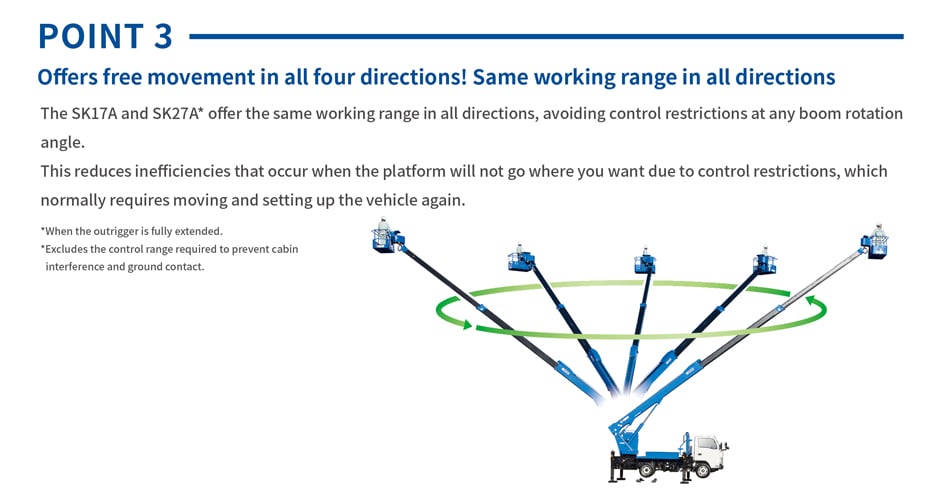

[POINT 3] Offers free movement in all four directions! Same working range in all directions

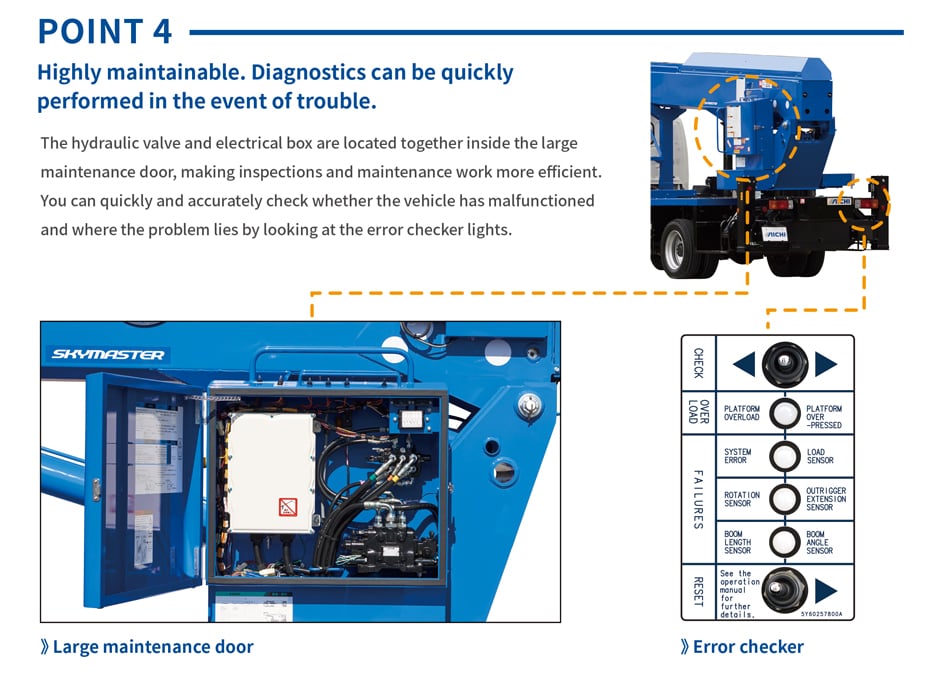

[POINT 4] Highly maintainable. Diagnostics can be quickly performed in the event of trouble.

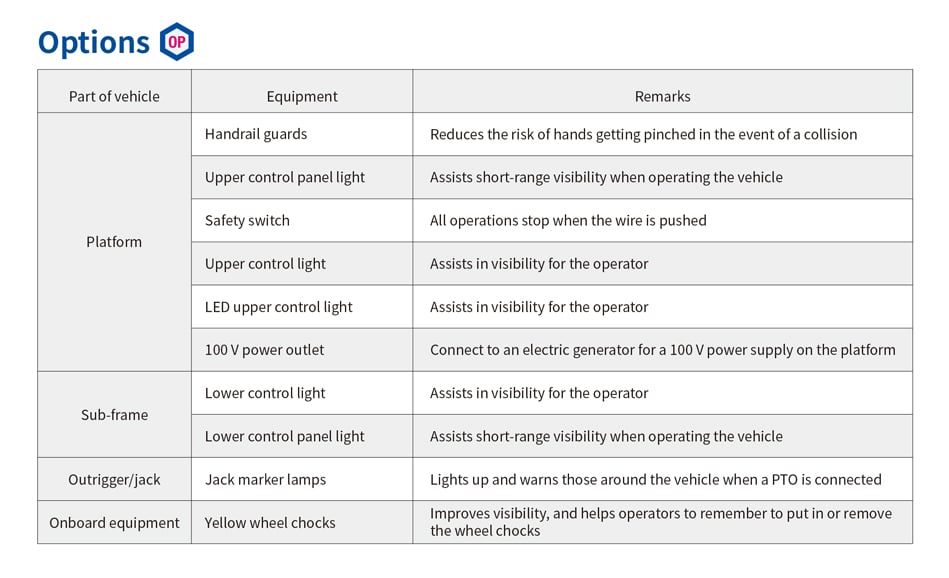

Options
Optional equipment (examples)

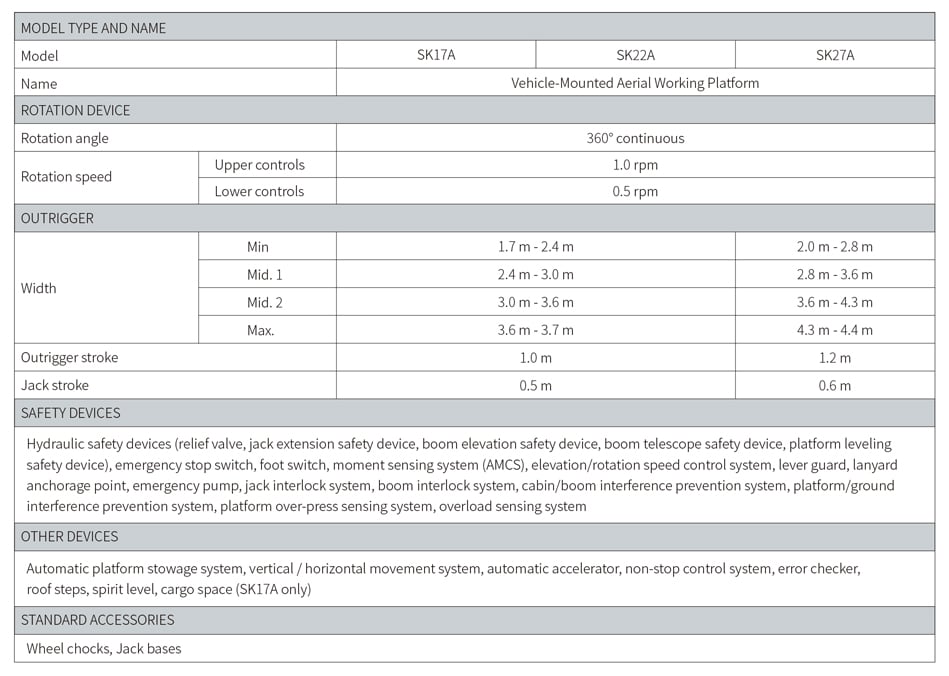

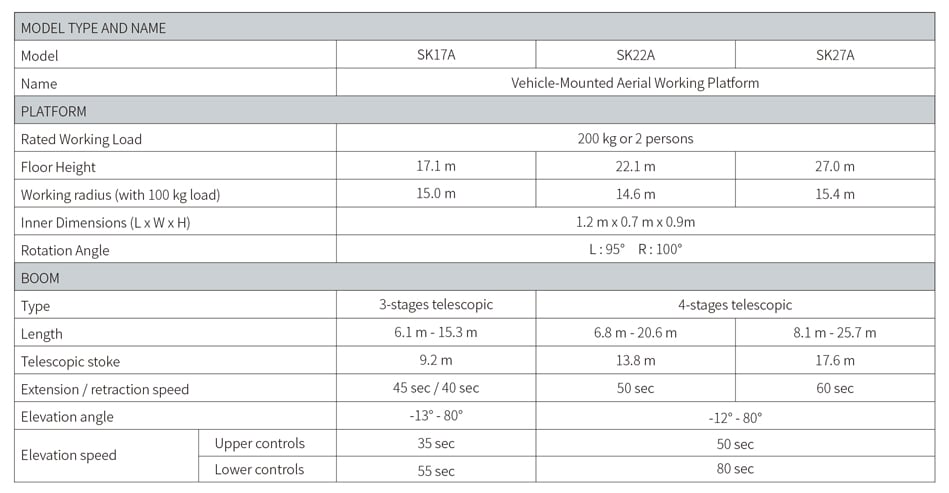

Specifications

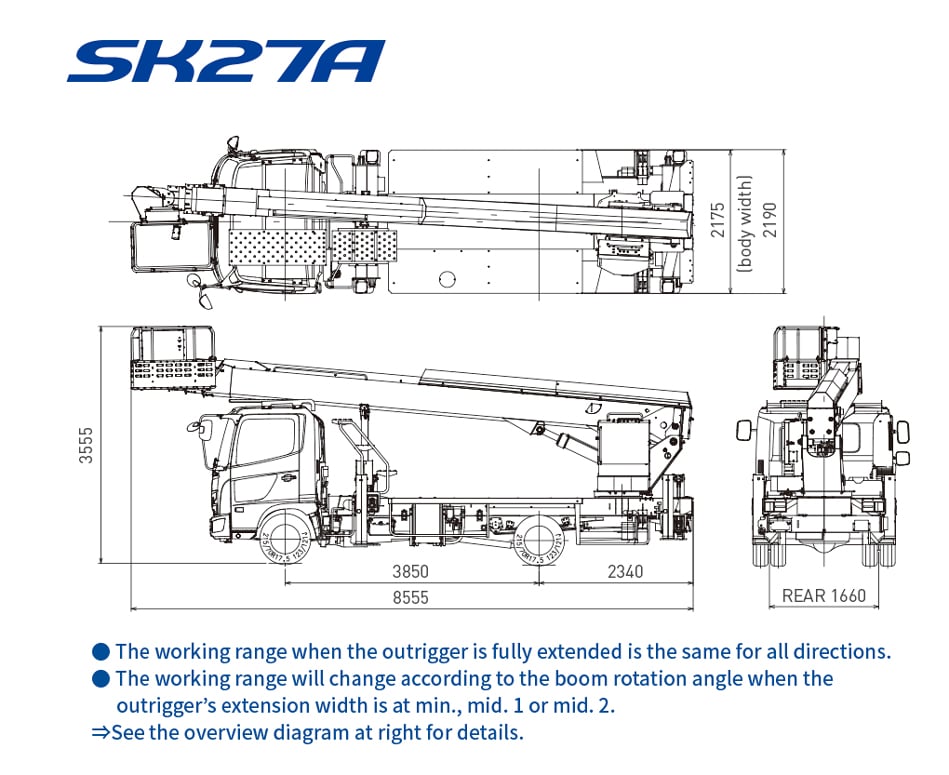

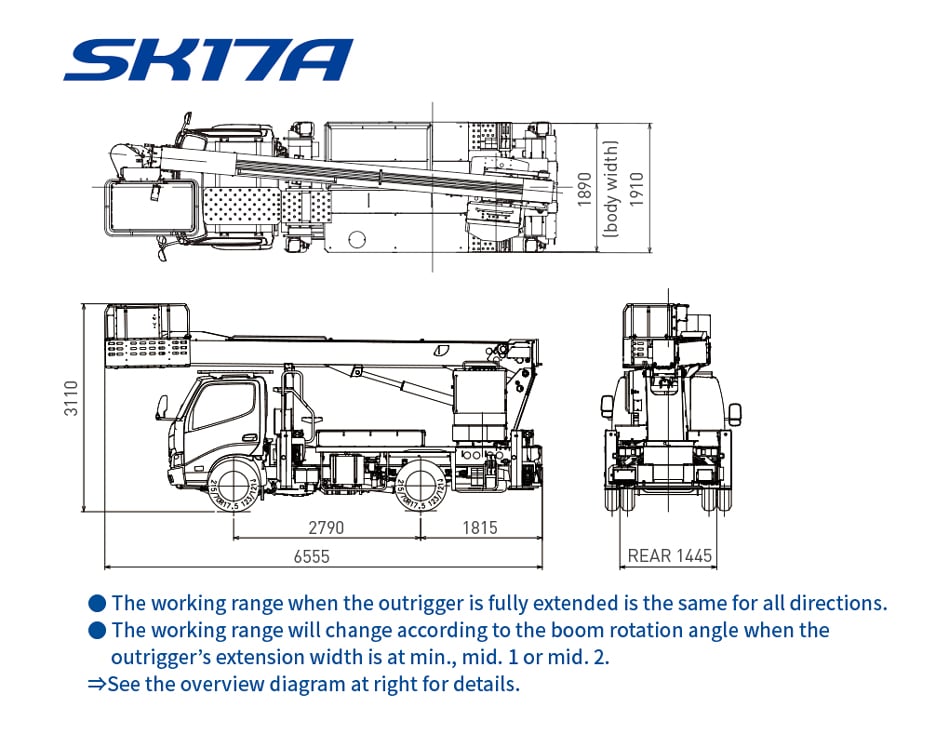

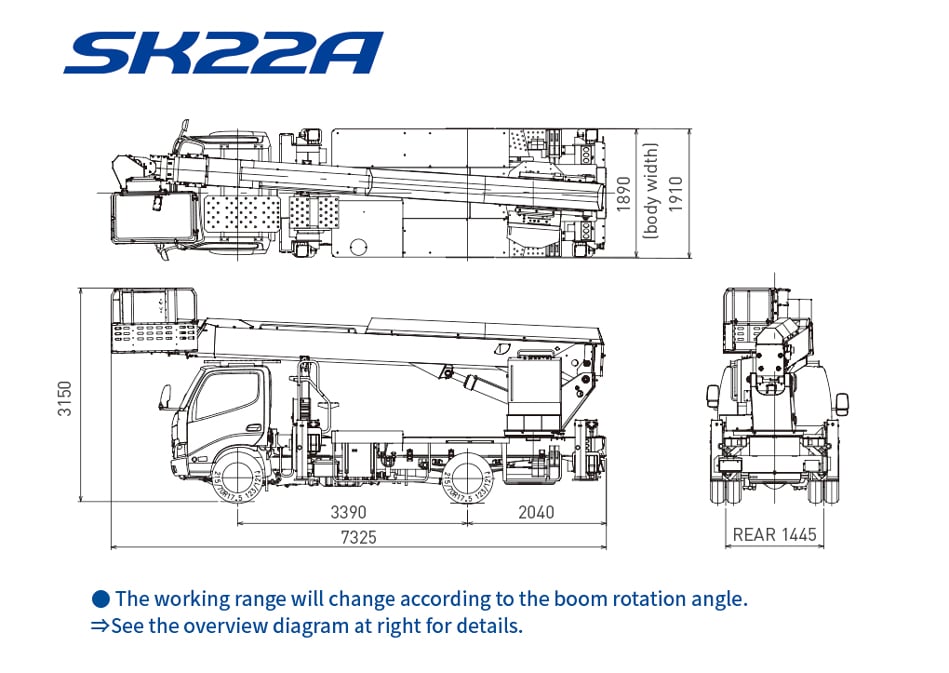

Vehicle dimensions

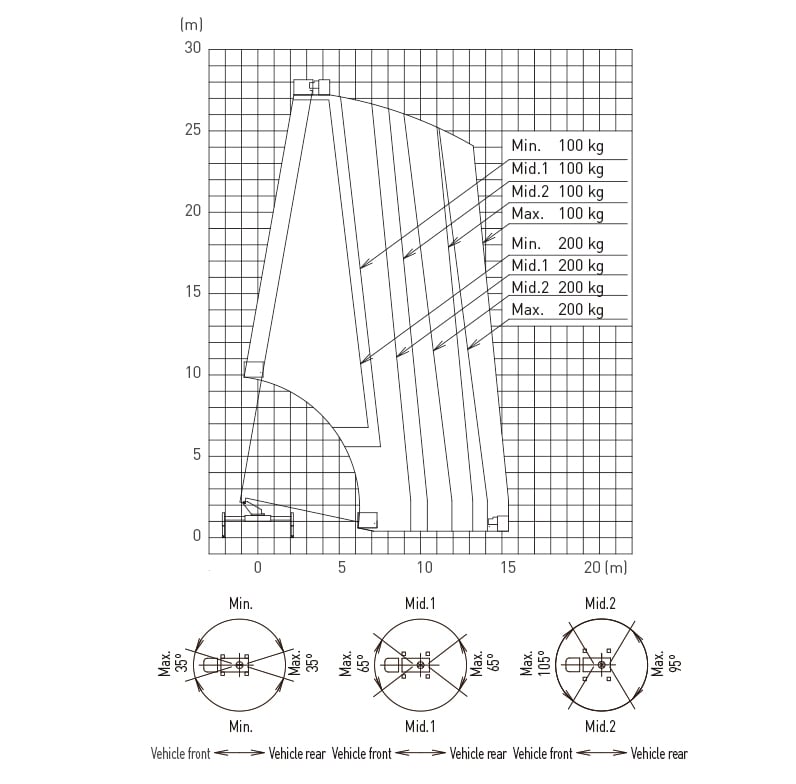

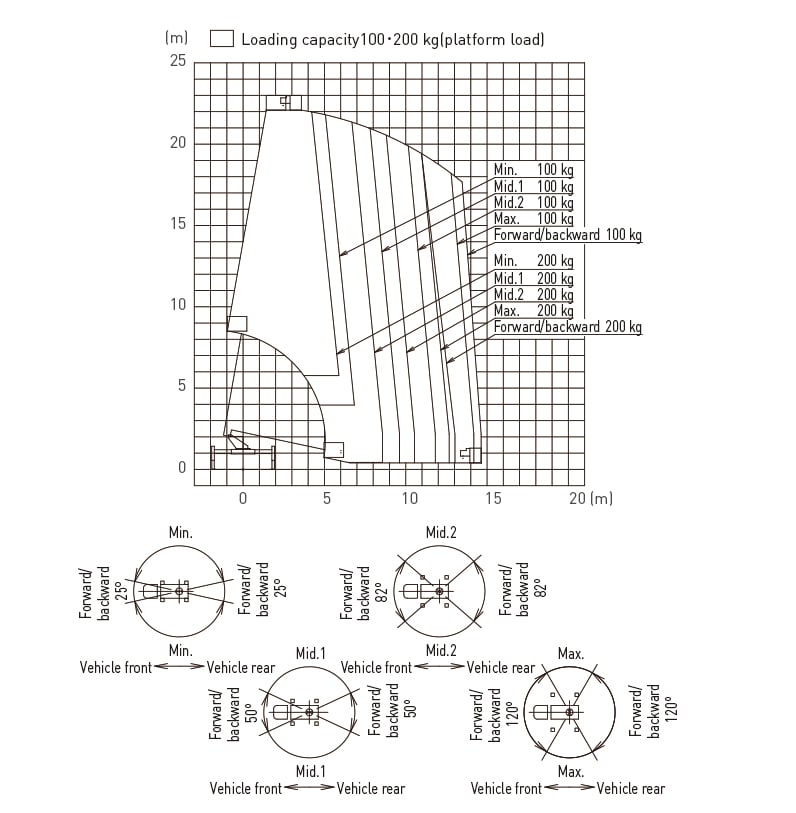

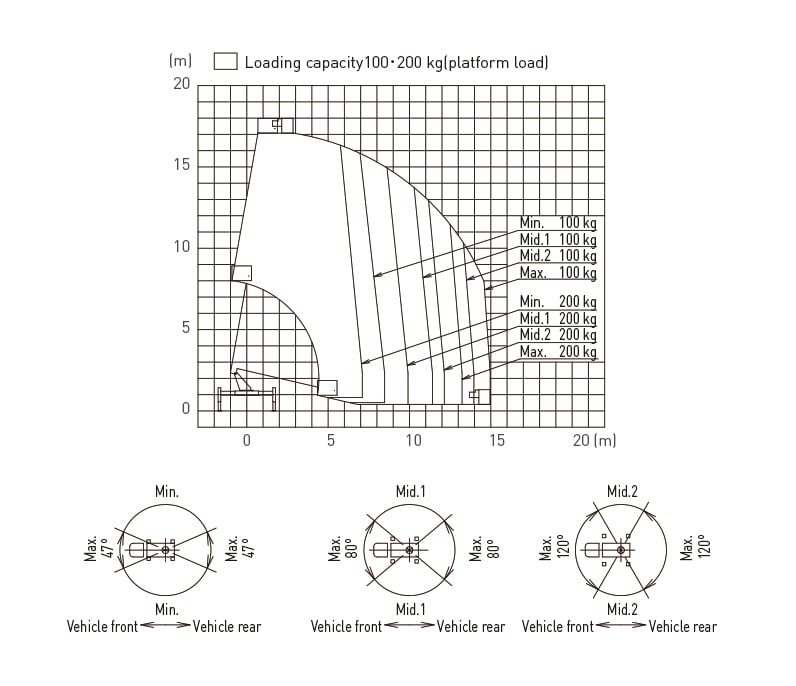

Working range diagram
Note 1: Vehicle dimensions may vary depending on the chassis.
Note 2: The working range diagram does not take into account the flex of the boom.
Note 3: The working range diagram assumes that the jack is set up on a level surface with solid ground.
Note 4: The working range will change according to the outrigger's extension width and the boom rotation angle.
Note 5: The minimum elevation angle on this vehicle differs depending on the boom rotation position, in order to avoid the boom and platform interfering with the chassis cabin, the outrigger or other parts of the vehicle.
