Located at a convenient height of 1m from the platform deck. Controls include enable switch, lift/travel lever and emergency stop button, as well as an easy-to-view battery level indicator.

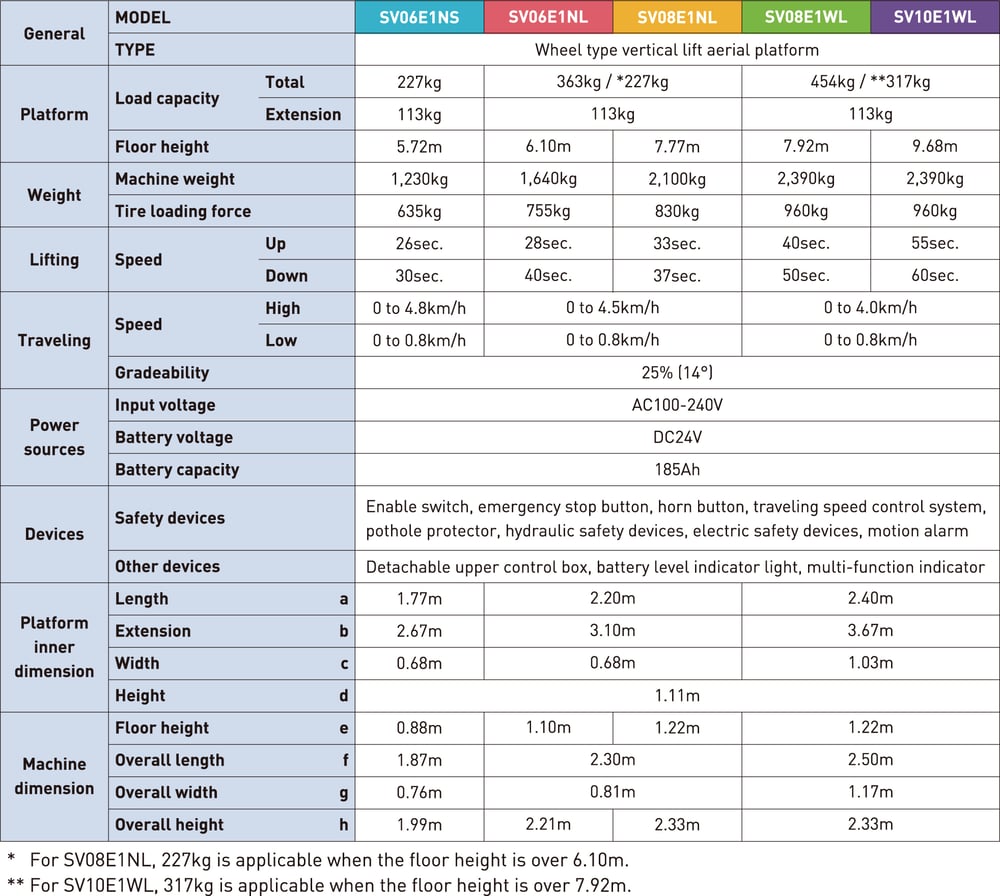

| MODEL | SV06E1NL |
|---|---|
| RATED LOAD | Total : 363kg Extention deck : 113kg |
| MAX. FLOOR HEIGHT CLASS | 6m |
| MIN. FLOOR HEIGHT CLASS | 1.1m |
Click to enlarge images.

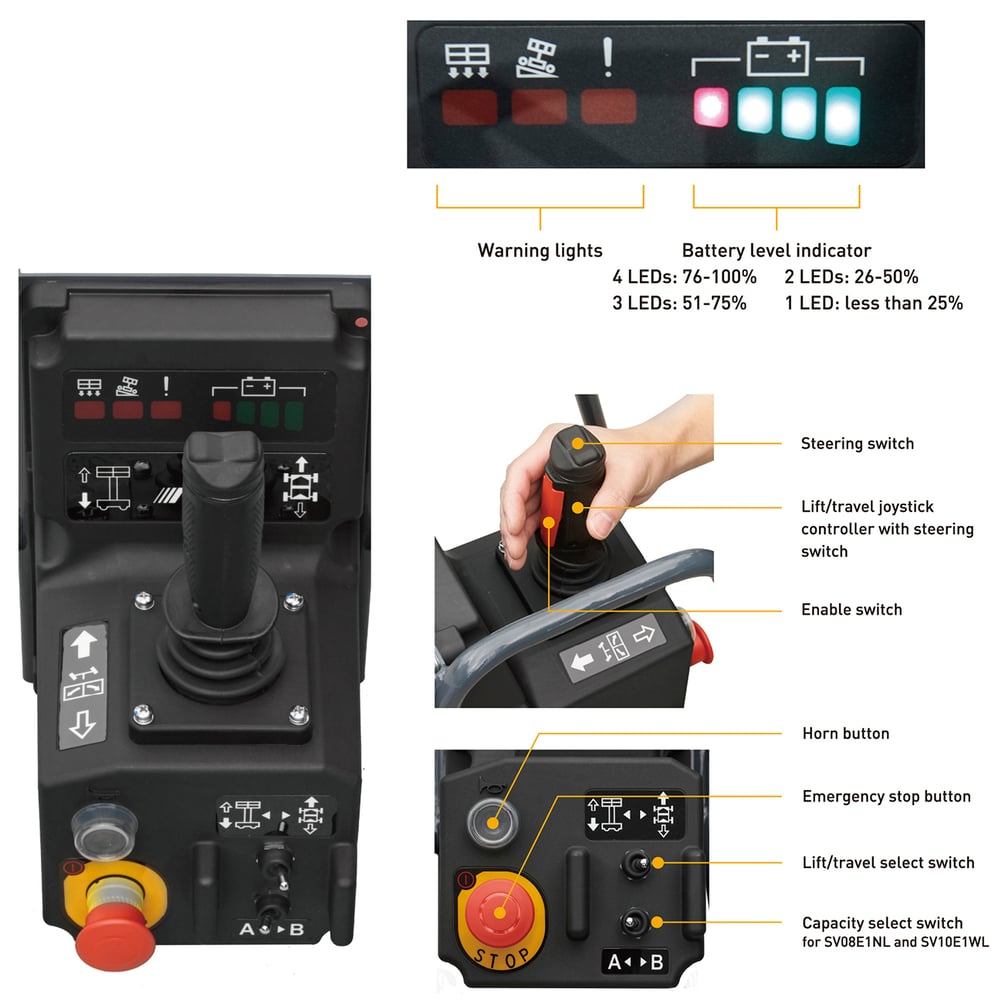

Upper Control Equipment

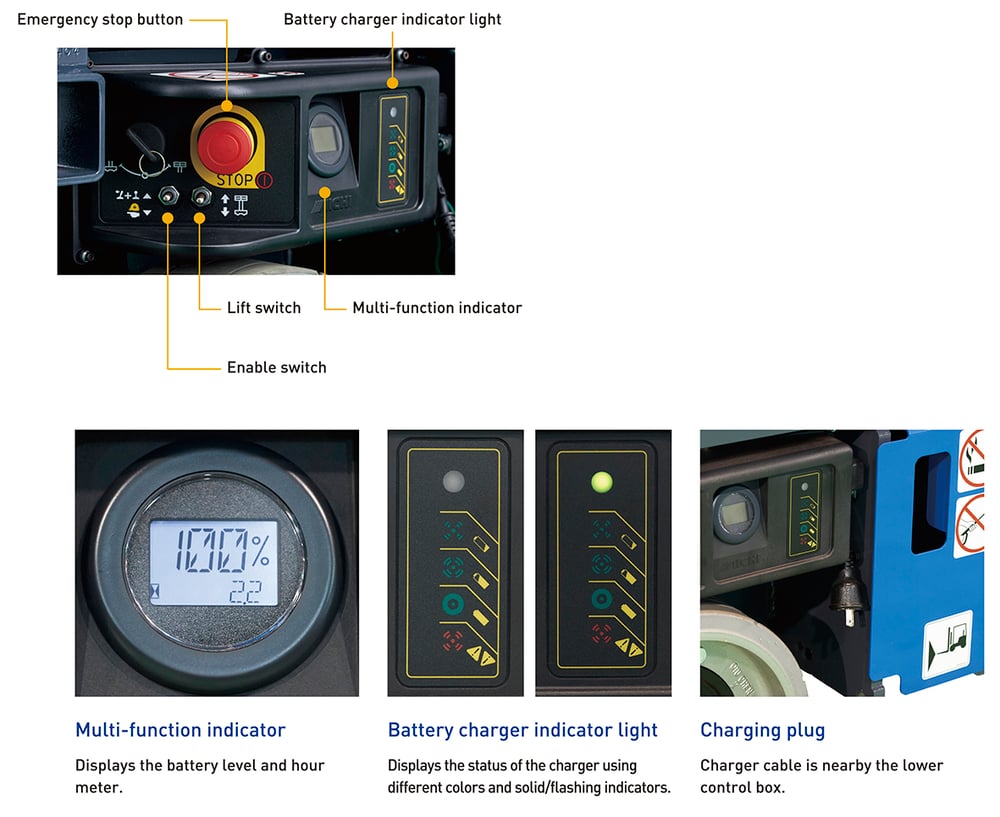

Lower Control Equipment
The right side of the chassis includes the lower control equipment, as well as a multi-function indicator for displaying the battery level and hour meter, and a battery charger indicator light.

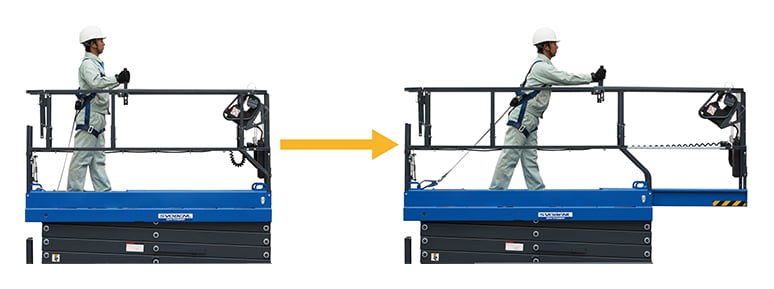

Sliding Extension Deck
The platform deck can be extended for greater reach to get closer work areas, even if objects on the road are blocking the chassis from the site area.

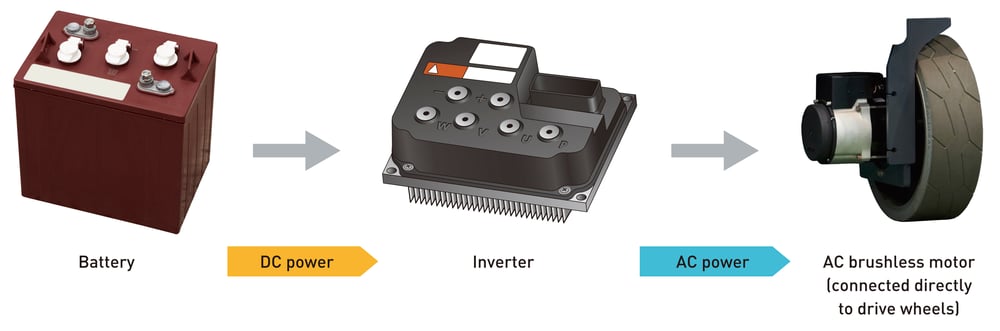

AC Drive Motor
An AC drive motor with energy saving has been used to ensure a long operation time.
1)Due to continuous product improvements, we reserve the right to make specification and/or equipment changes without prior notice.
2)The photos and/or drawings are for illustrative purpose only.
3)This information, while believed to be completely reliable is not be taken as warranty for which we assume legal responsibility.
4)Specifications are depend on regulations of each country.
5)All pictures are equipped with options.
Option

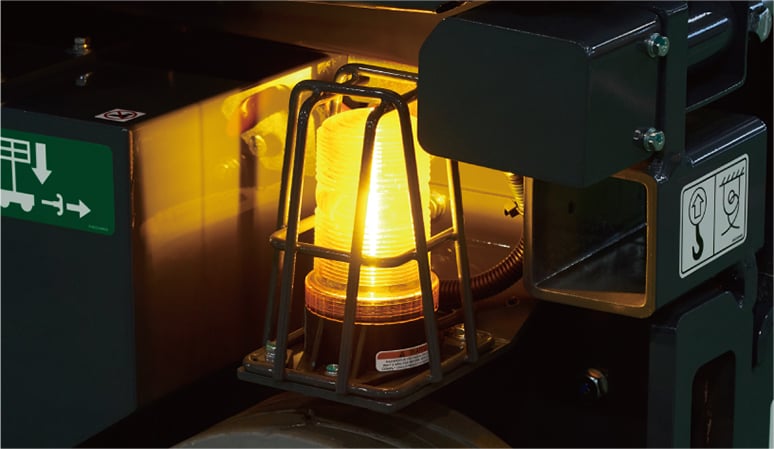

Flash beacon
Flashes when power is on to alert people nearby.
